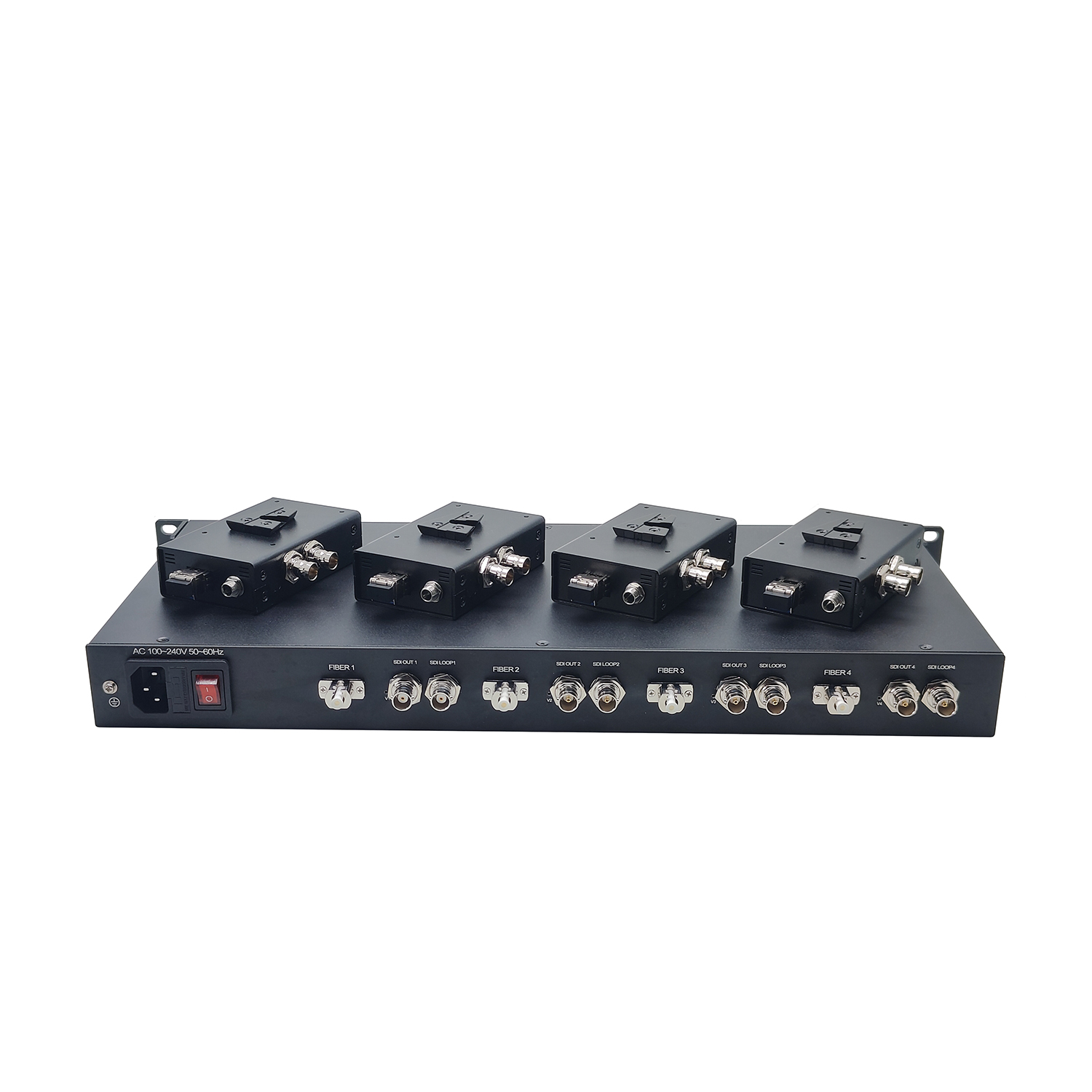

4 in 1 EFP 12G-SDI video with loop out fiber optic transmission system

Transmitter Model: HL-EFP-12G-1

Receiver Model: HL-EFP-12G-4

Description: 4 in 1 EFP 12G-SDI video with loop out fiber optic transmission system

Features

1.Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI);

2.Both transmitter and receiver have clock recovery function; (clock restorer can reduce high frequency jitter and completely regenerate data with pure low jitter clock);

3.The clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or 1.001 frequency division sub rate and SMPTE rate of 270Mbps;

4.Signal input has automatic cable equalization (EQ) function, output has drive (CD) function;

5.Support 1/4 hot shoe screw;

6.Support plug and play SFP optical module, which can replace optical module corresponding to different distances or interfaces according to the actual site requirements;

7.Support single-mode single-fiber/dual-fiber transmission distance 10km (default);

8.Support status light display;

9.Plug and play, without debugging;

10.Single/multi-channel/centralized card type, optional mini case, small case, 19-inch wide 1U, 2U, 4U fixed standard case;
