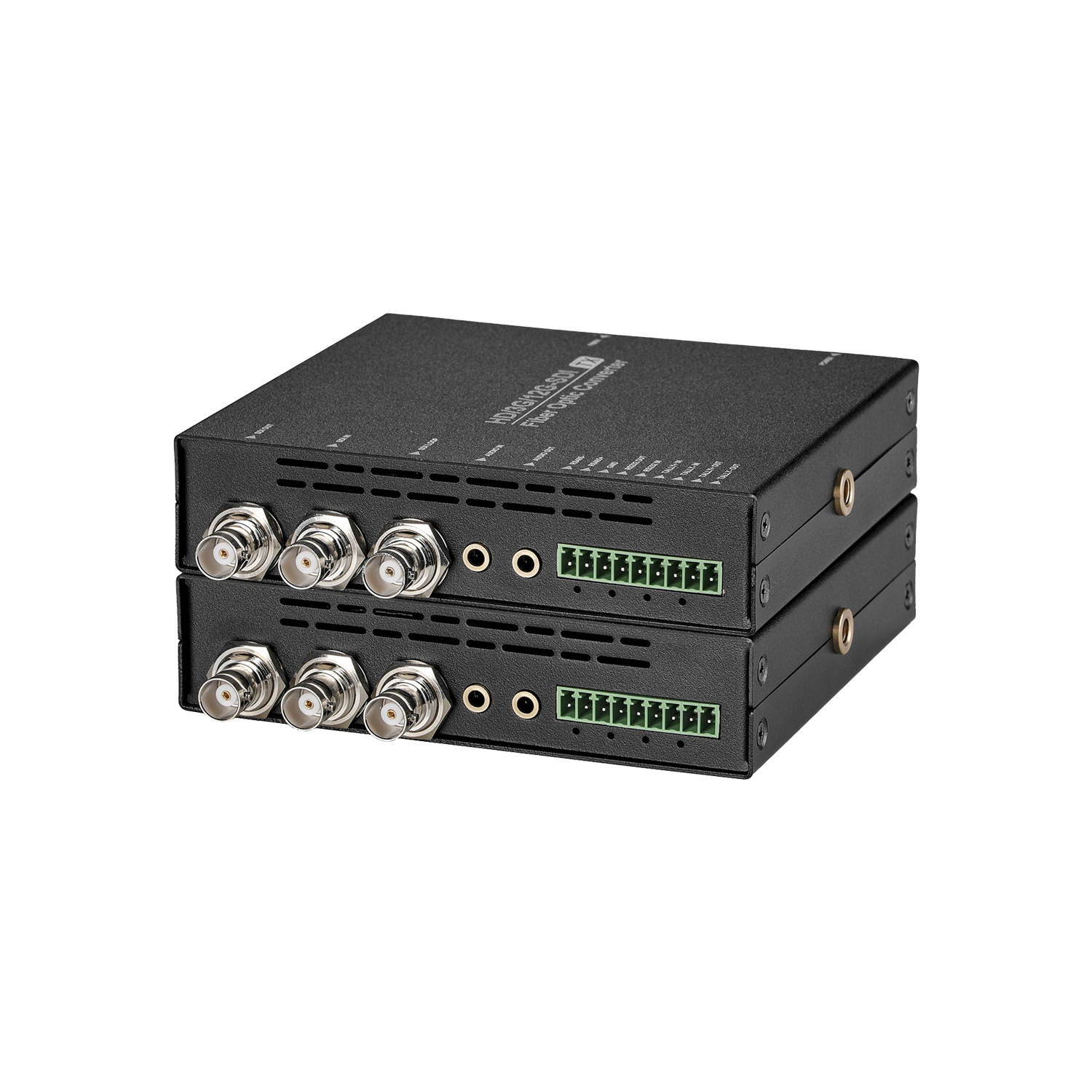

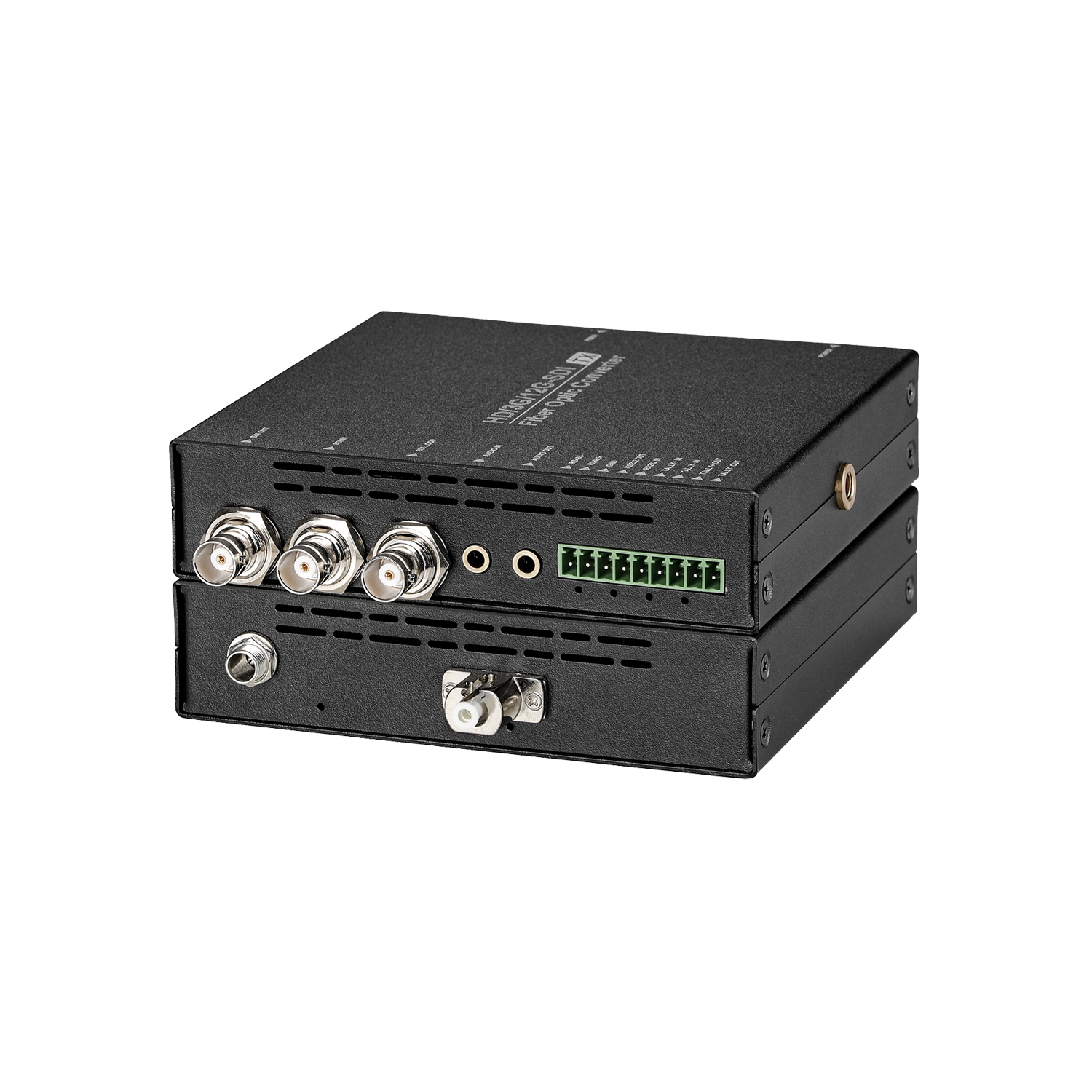

12G-SDI video with XLR balanced audio/Remote/Intercom/Tally/Ethernet,LEMO fiber connector

Model: HL-S12Gi-101

Description:

1.1 channel bidirectional 12G SDI video with loop output,1 channel bidirectional 3.5 audio,1 channel bidirectional tally,1 channel bidirectional RS485 data（half-duplex）,1 channel bidirectional RS232 data（full-duplex）

2.1 channel bidirectional 12G SDI video with loop output,1 channel bidirectional 3.5 audio,1 channel bidirectional tally,2 channel bidirectional RS485 data（half-duplex）

3.1 channel bidirectional 12G SDI video with loop output,1 channel bidirectional 3.5 audio,1 channel bidirectional tally,2 channel bidirectional RS232 data（full-duplex）

4.1 channel bidirectional 12G SDI video with loop output,1 channel bidirectional 3.5 audio,1 channel bidirectional ta,1 channel bidirectional RS422 data（full-duplex）

Features

1.Support 1 channel bidirectional 12G-SDI video transmission,transmitter have video loop-back sharing HD audio and video function;

2.Video support ST-2082-1 (12G),ST-2081-1 (6G),ST-424 (3G),ST-292 (HD) and ST-259 (SD);compatible with DVB-ASI and AES10 (MADI);

3.Both transmitter and receiver have clock recovery function;

4.Signal input has automatic cable equalization (EQ) function,output has drive (CD) function;

5.Support 1 channel bidirectional 3.5 stereo audio independent transmission;

6.Support RS232/485/422 serial port data transparent transmission;

7.Support 1 channel bidirectional tally signal;

8.Single mode 10km transmission distance;

9.Plug and play, without debugging;
